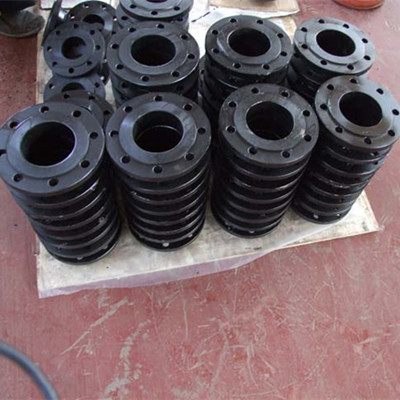

A105 FORGED STEEL SLIP ON FLANGE, DN200, PN16
Key Specifications / Features
Model No.: DW SOF-7 Hits: 99
China A105 Forged Steel Slip On Flange Manufacturer: ASTM A105, Pressure PN16, Raised Face Slip On Flanges, EN1092-1, DN200 (8 Inch), Black Painting
Request a quote
Share
Tags
Detail Information
Name: RF Forged Steel Slip on Flange.
Type: Slip on Flange.
Material: ASTM A105, Forged Steel.
Face: RF.
Standard: EN1092-1.
Pressure: PN16.
Size: DN200 (8 Inch).
Surface Finish: Black Painting.
EN1092-1 PN16 Plate Type01 Flange Standards Dimensions & Weight
Type: Slip on Flange.
Material: ASTM A105, Forged Steel.
Face: RF.
Standard: EN1092-1.
Pressure: PN16.
Size: DN200 (8 Inch).
Surface Finish: Black Painting.
EN1092-1 PN16 Plate Type01 Flange Standards Dimensions & Weight
Rated Diameter | Pipe | Flange | Screws | Weight/KG Flange | |||||
X | C | D | T | h | Thread | Bolt holes | KG | ||
10 | 17,2 | 18,0 | 60 | 90 | 14 | 14 | M12 | 4 | 0,602 |
15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
65 | 76,1 | 77,5 | 145 | 185 | 20 | 18 | M16 | 4 | 3,310 |
80 | 88,9 | 90,5 | 160 | 200 | 20 | 18 | M16 | 8 | 3,592 |
100 | 114,3 | 116,0 | 180 | 220 | 22 | 18 | M16 | 8 | 4,375 |
125 | 139,7 | 141,5 | 210 | 250 | 22 | 18 | M16 | 8 | 5,394 |
150 | 168,3 | 170,5 | 240 | 285 | 24 | 22 | M20 | 8 | 7,123 |
200 | 219,1 | 221,5 | 295 | 340 | 26 | 22 | M20 | 12 | 9,705 |
250 | 273,0 | 276,5 | 355 | 405 | 29 | 26 | M24 | 12 | 14,164 |
300 | 323,9 | 327,5 | 410 | 460 | 32 | 26 | M24 | 12 | 18,928 |
350 | 355,6 | 359,0 | 470 | 520 | 35 | 26 | M24 | 16 | 28,118 |
400 | 406,4 | 411,0 | 525 | 580 | 38 | 30 | M27 | 16 | 35,754 |
450 | 457,0 | 462,0 | 585 | 640 | 42 | 30 | M27 | 20 | 45,992 |
500 | 508,0 | 513,5 | 650 | 715 | 46 | 33 | M30 | 20 | 63,832 |
600 | 610,0 | 616,5 | 770 | 840 | 55 | 36 | M33 | 20 | 101,285 |
700 | 711,0 | 714,2 | 840 | 910 | 63 | 36 | M33 | 24 | 111,103 |
800 | 813,0 | 815,8 | 950 | 1025 | 74 | 39 | M36 | 24 | 158,555 |
900 | 914,0 | 917,4 | 1050 | 1125 | 82 | 39 | M36 | 28 | 192,239 |
1000 | 1016,0 | 1019,0 | 1170 | 1255 | 90 | 42 | M39 | 28 | 269,554 |
