API 6A Blind Flange Type 6BX 10000PSI
Key Specifications / Features
Model No.: DW BF-8 Hits: 632
China API 6A Blind Flange Manufacturer Duwa Piping supply API 6A Type 6BX 10000PSI Blind Flange Type 6BX 10000PSI, with carbon steel, stainless steel, also can supply blind flange pressure rating from 2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi, type 6b, 6bx.
Request a quote
Share
Tags
Detail Information
China API 6A Blind Flange manufacturer Duwa Piping can offer API 6A Blind Flange type 6BX 10000PSI,also include type 6B,6BX, pressure rating from 2000PSI (13.8MPA), 3000PSI(20.7MPA), 5000PSI(34.5MPA), 10000PSI(69.0MPA), 15000PSI(103.5MPA),to 20000PSI(138.0MPA), which is precisely engineered in accordance with international quality standards totally.We offer these flanges in various dimensions as per the specifications provided by our clients.To gain optimum client satisfaction, we ensure safe packaging and prompt delivery of the ordered consignment.

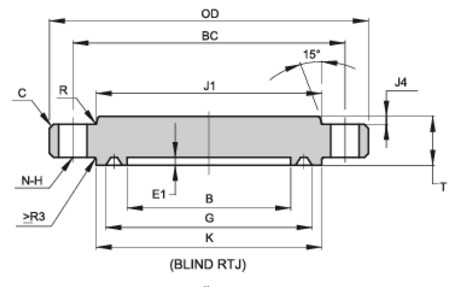

Dimension of API 6X Blind Flange 10000PSI(69.0MPA) type 6BX
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16" | 46.8 | 185 | 3 | - | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | - | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16" | 53.2 | 200 | 3 | - | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | - | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16" | 65.9 | 230 | 3 | - | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | - | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16" | 78.6 | 270 | 3 | - | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | - | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16" | 104 | 315 | 3 | - | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | - | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8" | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16" | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9 " | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11" | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8" | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4" | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4" | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4" | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |
