ASTM A105 SLIP ON FLANGE, 300 LB, 20 INCH
Key Specifications / Features
Model No.: DW SOF-5 Hits: 166
China ASTM A105 Slip On Flange Manufacturer Duwa Piping Offers ASTM A105 Slip On Flanges, Class 300 (PN20), Size 20 Inch, bolts connection, Raised Face, ANSI B16.5
Request a quote
Share
Tags
Detail Information
Name: ASTM A105 Slip On Flange.
Type: Slip On Flange.
Materials: ASTM A105.
Face: RF.
Standards: ANSI B16.5.
Pressure: 300 LB (PN20).
ASME/ANSI B16.5 300lb Slip on Flange Standard Dimensions & Weight
Type: Slip On Flange.
Materials: ASTM A105.
Face: RF.
Standards: ANSI B16.5.
Pressure: 300 LB (PN20).
Size: 20 Inch

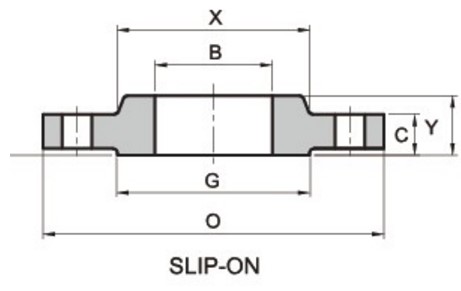

ASME/ANSI B16.5 300lb Slip on Flange Standard Dimensions & Weight
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub.Y | Bore | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | G | Y | B | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2" | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 22.4 | 22.4 | 66.5 | 15.7 | 4 | 1/2" | 0.7 | 1.5 |
| 3/4" | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 25.4 | 27.7 | 82.6 | 19.1 | 4 | 5/8" | 1.2 | 2.6 |
| 1" | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 26.9 | 34.5 | 88.9 | 19.1 | 4 | 5/8" | 1.4 | 3.1 |
| 1-1/4" | 32 | 133. 5 | 19.1 | 63.5 | 63.5 | 26.9 | 43.2 | 98.6 | 19.1 | 4 | 5/8" | 1.8 | 4 |
| 1-1/2" | 40 | 155. 5 | 20.6 | 69.9 | 73.2 | 30.2 | 49.5 | 114.3 | 22.4 | 4 | 5/8" | 2.7 | 6 |
| 2" | 50 | 165. 0 | 22.4 | 84.1 | 91.9 | 33.3 | 62 | 127 | 19.1 | 8 | 5/8" | 3.2 | 7 |
| 2-1/2" | 65 | 190. 5 | 25.4 | 100.1 | 104.6 | 38.1 | 74.7 | 149.4 | 22.4 | 8 | 3/4" | 4.5 | 9.9 |
| 3" | 80 | 209. 5 | 28.4 | 117.3 | 127 | 42.9 | 90.7 | 168.1 | 22.4 | 8 | 3/4" | 5.9 | 13 |
| 3-1/2" | 90 | 228. 5 | 30.2 | 133.4 | 139.7 | 44.5 | 103. 4 | 184.2 | 22.4 | 8 | 3/4" | 7.5 | 16.5 |
| 4" | 100 | 254. 0 | 31.8 | 146.1 | 157.2 | 47.8 | 116. 1 | 200.2 | 22.4 | 8 | 3/4" | 10 | 22 |
| 5" | 125 | 279. 5 | 35.1 | 177.8 | 185.7 | 50.8 | 143. 8 | 235 | 22.4 | 8 | 3/4" | 12.5 | 27.5 |
| 6" | 150 | 317. 5 | 36.6 | 206.2 | 215.9 | 52.3 | 170. 7 | 269.7 | 22.4 | 12 | 3/4" | 16.5 | 36.4 |
| 8" | 200 | 381. 0 | 41.1 | 260.4 | 269.7 | 62 | 221. 5 | 330.2 | 25.4 | 12 | 7/8" | 25.5 | 56 |
| 10" | 250 | 444. 5 | 47.8 | 320.5 | 323.9 | 66.5 | 276. 4 | 387.4 | 28.4 | 16 | 1" | 35 | 77 |
| 12" | 300 | 520. 5 | 50.8 | 374.7 | 381 | 73.2 | 327. 2 | 450.9 | 31.8 | 16 | 1 1/8" | 52 | 115 |
| 14" | 350 | 584. 0 | 53.8 | 425.5 | 412.8 | 76.2 | 359. 2 | 514..4 | 31.8 | 20 | 1 1/8" | 73 | 161 |
| 16" | 400 | 647. 5 | 57.2 | 482.6 | 469.9 | 82.6 | 410. 5 | 571.5 | 35.1 | 20 | 1 1/4" | 88 | 194 |
| 18" | 450 | 711. 0 | 60.5 | 533.4 | 533.4 | 88.9 | 461. 8 | 628.7 | 35.1 | 24 | 1 1/4" | 115 | 253 |
| 20" | 500 | 774. 5 | 63.5 | 587.2 | 584.2 | 95.3 | 513. 1 | 685.8 | 35.1 | 24 | 1 1/4" | 139 | 306 |
| 24" | 600 | 914. 5 | 69.9 | 701.5 | 692.2 | 106. 4 | 616. 0 | 812.8 | 41.1 | 24 | 1 1/2" | 212 | 46 |
