ASTM A234 WPB Elbow Short Radius, SCHXXS, 3 Inch
Key Specifications / Features
Model No.: DW PE-6 Hits: 67
China Short Radius Elbow Manufacturer Duwa Produces ASTM A234 WPB Elbow Short Radius, 90Degree, Wall thickness SCHXXS, Size 3 Inch. EN 10204 3.1 certificate can be supplied.
Request a quote
Share
Tags
Detail Information
Type: Short Radius Elbow.
Material: ASTM A234 WPB.
Size: 3 Inch.
Wall thickness: SCHXXS

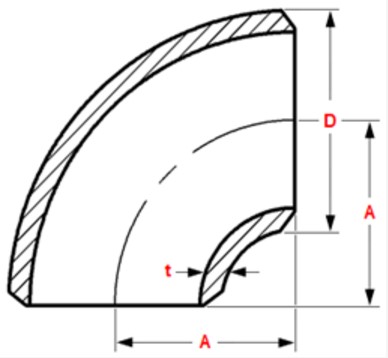

ASME B16.9 Short Radius Elbow 90 Degree Dimensions
Material: ASTM A234 WPB.
Size: 3 Inch.
Wall thickness: SCHXXS
ASME B16.9 Short Radius Elbow 90 Degree Dimensions
| NPS | OD, D | Center to End , A |
| 1 | 33.4 | 25 |
| 1 ¼ | 42.2 | 32 |
| 1 ½ | 48.3 | 38 |
| 2 | 60.3 | 51 |
| 2 ½ | 73 | 64 |
| 3 | 88.9 | 76 |
| 3 ½ | 101.6 | 89 |
| 4 | 114.3 | 102 |
| 5 | 141.3 | 127 |
| 6 | 168.3 | 152 |
| 8 | 219.1 | 203 |
| 10 | 273 | 254 |
| 12 | 323.8 | 305 |
| 14 | 355.6 | 356 |
| 16 | 406.4 | 406 |
| 18 | 457 | 457 |
| 20 | 508 | 508 |
| 22 | 559 | 559 |
| 24 | 610 | 610 |
