Butt Welding Equal Tee Cross
Key Specifications / Features
Model No.: DW TE-5 Hits: 59
Manufacturer of equal tee fittings, equal Cross fittings, steel equal tee fittings, steel welded pipe fittings, unequal tee fittings, steel unequal tee fittings, equal cross, unequal cross, welded pipe fittings By Duwa Piping, China.
Request a quote
Share
Tags
Detail Information
We are engaged in manufacture and supply of a comprehensive range of butt weld pipe fittings, which is available in a variety of shapes such as equal tee fittings, cross equal fittings, unequal tee fittings & cross unequal fittings. Flawlessly engineered to perfection using latest machines and technology, these butt weld pipe fittings are widely used in a multitude of industries around the world. Long serve time in quality, these pipe fittings are available at competitive prices.

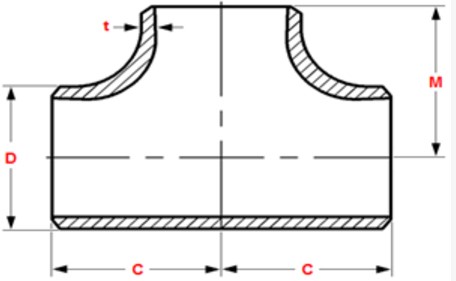

Dimensions Chart of butt-welding equal tee and cross ASME B16.9
NPS | OD, D | Center to End | |
Run, C | Outlet, M [Notes(1),(2)] | ||
1/2 | 21.3 | 25 | 25 |
3/4 | 26.7 | 29 | 29 |
1 | 33.4 | 38 | 38 |
1 ¼ | 42.2 | 48 | 48 |
1 ½ | 48.3 | 57 | 57 |
2 | 60.3 | 64 | 64 |
2 ½ | 73 | 76 | 76 |
3 | 88.9 | 86 | 86 |
3 ½ | 101.6 | 95 | 95 |
4 | 114.3 | 105 | 105 |
5 | 141.3 | 124 | 124 |
6 | 168.3 | 143 | 143 |
8 | 219.1 | 178 | 178 |
10 | 273 | 216 | 216 |
12 | 323.8 | 254 | 254 |
14 | 355.6 | 279 | 279 |
16 | 406.4 | 305 | 305 |
18 | 457 | 343 | 343 |
20 | 508 | 381 | 381 |
22 | 559 | 419 | 419 |
24 | 610 | 432 | 432 |
26 | 660 | 495 | 495 |
28 | 711 | 521 | 521 |
30 | 762 | 559 | 559 |
32 | 813 | 597 | 597 |
34 | 864 | 635 | 635 |
36 | 914 | 673 | 673 |
38 | 965 | 711 | 711 |
40 | 1016 | 749 | 749 |
42 | 1067 | 762 | 711 |
44 | 1118 | 813 | 762 |
46 | 1168 | 851 | 800 |
48 | 1219 | 889 | 838 |
NOTES: | |||
(1)Outlet dimension M for NPS 26 and larger is recommended but not required . | |||
(2)Dimensions applicable to crosses NPS 24 and smaller. |
