EN1092-1 Plate FLANGE, ASTM A105, 12 INCH, PN6
Key Specifications / Features
Model No.: DW SOF-4 Hits: 159
China EN1092-1 Plate Flange Manufacturer Duwa Piping offers ASTM A105 Slip on Flange, 12INCH, Pn6 , EN1092-1, generally supplied with a flat face
Request a quote
Share
Tags
Detail Information
Name: EN1092-1 Plate FLANGE, ASTM A105, 12 INCH, 300LB,
Name: Slip on Flange.
Material: ASTM A105.
Size: 12INCH.
Pressure: PN6.
Standard: EN1092-1.
EN 1092-1 Flange include below types: TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN16

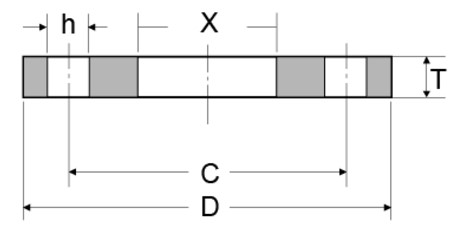

EN1092-1 Type 01 PN6 Plate Flange Dimensions & Weight
Name: Slip on Flange.
Material: ASTM A105.
Size: 12INCH.
Pressure: PN6.
Standard: EN1092-1.
EN 1092-1 Flange include below types: TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN16
EN1092-1 Type 01 PN6 Plate Flange Dimensions & Weight
| Rated Diameter | Pipe | Flange | Screws |
Weight/KG Flange |
|||||
| X | C | D | T | h | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
| 20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
| 25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
| 32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
| 40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
| 50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
| 65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
| 80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
| 100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
| 125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
| 150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
| 200 | 219,1 | 221,5 | 280 | 320 | 22 | 18 | M16 | 8 | 6,862 |
| 250 | 273,0 | 276,5 | 335 | 375 | 24 | 18 | M16 | 12 | 8,893 |
| 300 | 323,9 | 327,5 | 395 | 440 | 24 | 22 | M20 | 12 | 11,880 |
| 350 | 355,6 | 359,5 | 445 | 490 | 26 | 22 | M20 | 12 | 16,788 |
| 400 | 406,4 | 411,0 | 495 | 540 | 28 | 22 | M20 | 16 | 19,781 |
| 450 | 457,0 | 462,0 | 550 | 595 | 30 | 22 | M20 | 16 | 24,495 |
| 500 | 508,0 | 513,5 | 600 | 645 | 30 | 22 | M20 | 20 | 26,307 |
| 600 | 610,0 | 616,5 | 705 | 755 | 32 | 26 | M24 | 20 | 34,702 |
| 700 | 711,0 | 714,2 | 810 | 860 | 40 | 26 | M24 | 24 | 52,441 |
| 800 | 813,0 | 815,8 | 920 | 975 | 44 | 30 | M27 | 24 | 71,262 |
| 900 | 914,0 | 917,4 | 1020 | 1075 | 48 | 30 | M27 | 24 | 86,269 |
| 1000 | 1016,0 | 1019,0 | 1120 | 1175 | 52 | 30 | M27 | 28 | 101,340 |
| 1200 | 1220,0 | 1224,0 | 1340 | 1405 | 60 | 33 | M30 | 32 | 162,638 |
| 1400 | 1420,0 | 1424,0 | 1560 | 1630 | 72 | 36 | M33 | 36 | 257,772 |
| 1600 | 1620,0 | 1624,0 | 1760 | 1830 | 80 | 36 | M33 | 40 | 324,382 |
| 1800 | 1820,0 | 1826,0 | 1970 | 2045 | 88 | 39 | M36 | 44 | 422,35 |
| 2000 | 2020,0 | 2026,0 | 2180 | 2265 | 96 | 42 | M39 | 48 | 555,18 |
