Stainless Steel Concentric Reducer
Key Specifications / Features
Model No.: DW RD-3 Hits: 94
China Stainless Steel Concentric Reducer manufacturer Duwa Piping offers Concentric Reducers, Stainless Steel SS304, SMLS (Seamless), 4 X 3 Inch, SCH40 Wall Thickness. EN 10204 3.1 certificate can be supplied.
Request a quote
Share
Tags
Detail Information
Type: Stainless Steel Concentric Reducer.
Material: Stainless Steel, SS304.
Size: 4 X 3 Inch.
Wall Thickness: SCH40.
Material: Stainless Steel, SS304.
Size: 4 X 3 Inch.
Wall Thickness: SCH40.

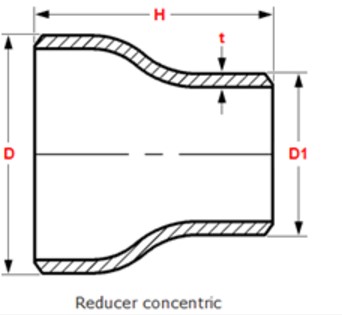

Concentric Reducer Dimensions:
| NPS | Outside Diameter at Bevel | End-to- End, H | |
| Large End | Small End | ||
| 3/4×1/2 | 26.7 | 21.3 | 38 |
| 3/4×3/8 | 26.7 | 17.3 | 38 |
| 1×3/4 | 33.4 | 26.7 | 51 |
| 1×1/2 | 33.4 | 21.3 | |
| 1-1/4×1 | 42.2 | 33.4 | 51 |
| 1-1/4×3/4 | 42.2 | 26.7 | |
| 1-1/4×1/2 | 42.2 | 21.3 | |
| 1-1/2×1-1/4 | 48.3 | 42.2 | 64 |
| 1-1/2×1 | 48.3 | 33.4 | |
| 1-1/2×3/4 | 48.3 | 26.7 | |
| 1-1/2×1/2 | 48.3 | 21.3 | |
| 2×1-1/2 | 60.3 | 48.3 | 76 |
| 2×1-1/4 | 60.3 | 42.2 | |
| 2×1 | 60.3 | 33.4 | |
| 2×3/4 | 60.3 | 26.7 | |
| 2-1/2×2 | 73 | 60.3 | 89 |
| 2-1/2×1-1/2 | 73 | 48.3 | |
| 2-1/2×1-1/4 | 73 | 42.2 | |
| 2-1/2×1 | 73 | 33.4 | |
| 3×2-1/2 | 88.9 | 73 | 89 |
| 3×2 | 88.9 | 60.3 | |
| 3×1-1/2 | 88.9 | 48.3 | |
| 3×1-1/4 | 88.9 | 42.2 | |
| 3-1/2×3 | 101.6 | 88.9 | 102 |
| 3-1/2×2-1/2 | 101.6 | 73 | |
| 3-1/2×2 | 101.6 | 60.3 | |
| 3-1/2×1-1/2 | 101.6 | 48.3 | |
| 3-1/2×1-1/4 | 101.6 | 42.2 | |
| 4×3-1/2 | 114.3 | 101.6 | 102 |
| 4×3 | 114.3 | 88.9 | |
| 4×2-1/2 | 114.3 | 73 | |
| 4×2 | 114.3 | 60.3 | |
| 4×1-1/2 | 114.3 | 48.3 | |
| 5×4 | 141.3 | 114.3 | 127 |
| 5×3-1/2 | 141.3 | 101.6 | |
| 5×3 | 141.3 | 88.9 | |
| 5×2-1/2 | 141.3 | 73 | |
| 5×2 | 141.3 | 60.3 | |
| 6×5 | 168.3 | 141.3 | 140 |
| 6×4 | 168.3 | 114.3 | |
| 6×3-1/2 | 168.3 | 101.6 | |
| 6×3 | 168.3 | 88.9 | |
| 6×2-1/2 | 168.3 | 73 | |
| 8×6 | 219.1 | 168.3 | 152 |
| 8×5 | 219.1 | 141.3 | |
| 8×4 | 219.1 | 114.3 | |
| 8×3-1/2 | 219.1 | 101.6 | |
| 10×8 | 273 | 219.1 | 178 |
| 10×6 | 273 | 168.3 | |
| 10×5 | 273 | 141.3 | |
| 10×4 | 273 | 114.3 | |
| 12×10 | 323.8 | 273 | 203 |
| 12×8 | 323.8 | 219.1 | |
| 12×6 | 323.8 | 168.3 | |
| 12×5 | 323.8 | 141.3 | |
| 14×12 | 355.6 | 323 | 330 |
| 14×10 | 355.6 | 273 | |
| 14×8 | 355.6 | 219.1 | |
| 14×6 | 355.6 | 168.3 | |
| 16×14 | 406.4 | 355.6 | 356 |
| 16×12 | 406.4 | 323.8 | |
| 16×10 | 406.4 | 273 | |
| 16×8 | 406.4 | 219.1 | |
| 18×16 | 457.2 | 406.4 | 381 |
| 18×14 | 457.2 | 355.6 | |
| 18×12 | 457.2 | 323.8 | |
| 18×10 | 457.2 | 273 | |
| 20×18 | 508 | 457.2 | 508 |
| 20×16 | 508 | 406.4 | |
| 20×14 | 508 | 355.6 | |
| 20×12 | 508 | 323.8 | |
| 22×20 | 558.8 | 508 | 508 |
| 22×18 | 558.8 | 457.2 | |
| 22×16 | 558.8 | 406.4 | |
| 22×14 | 558.8 | 355.6 | |
| 24×22 | 609.6 | 558.8 | 508 |
| 24×20 | 609.6 | 508 | |
| 24×18 | 609.6 | 457.2 | |
| 24×16 | 609.6 | 406.4 | |
| 26×24 | 660 | 610 | 610 |
| 26×22 | 660 | 559 | |
| 26×20 | 660 | 508 | |
| 26×18 | 660 | 457 | |
| 28×26 | 711 | 660 | 610 |
| 28×24 | 711 | 610 | |
| 28×20 | 711 | 508 | |
| 28×18 | 711 | 457 | |
| 30×28 | 762 | 711 | 610 |
| 30×26 | 762 | 660 | |
| 30×24 | 762 | 610 | |
| 30×20 | 762 | 508 | |
